Underfloor heat pump connect parts 4 way thermostatic mixing valve

FOB Reference Price:Get Latest Price
$28.00 - $35.00 / Unit | 50 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 1000 >1000
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 100 Units)
Customized packaging (Min. Order: 100 Units)

More

Graphic customization (Min. Order: 100 Units) Less
Samples:
$40.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
SINHO
Model Number:
910024CC
Application:
underfloor heating system
Material:
Brass, HPb573(57%cu,3%Pb)
Temperature of Media:
Medium Temperature
Pressure:
High Pressure
Power:
Hydraulic
Media:
Water
Port Size:
Standard
Structure:
Angle
Standard or Nonstandard:
Standard
OEM:
Yes
Max inlet temperature:
90°C
Max pressure:
16 bar
Max working pressure:
5Bar
Adjustable temperature range:
30-65°C

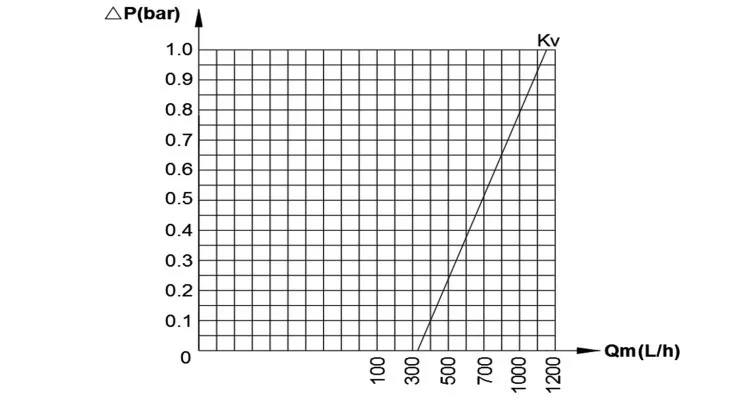

KV:
3.0 m3/h
Flow rate:
60L/min
Temperature Stability:
±2℃
Supply Ability
Supply Ability:
100000 Unit/Units per Month
Packaging & Delivery
Packaging Details
20 units/cartons,the catton size is 47*29*33cm
Port
SHANGHAI
Lead Time :
Quantity(Units) 1 - 1000 >1000
Est. Time(days) 25 To be negotiated
Video Description
Product Description

Feature:

1. Thermostatic protection

2. Single piece thermostatic cartridge construction

3. Automatic shut off in the event of hot or cold water failure

4. High flow rate, low pressure drops

5.Adjustable outlet temperature

6.Temperature stability ± 2°C

7.Integral Check Valves and Strainers

8.Easy installation

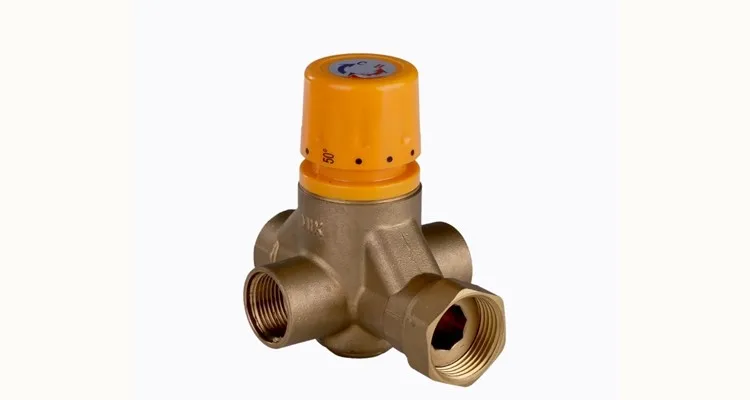

Product Name
4way thermostatic mixing valve
Material
Brass
Work Pressure
5Bar
Max Pressure
16Bar
Cold Water Temperature
4-29℃
Hoter Water Temperature
45-90℃
Mixing Water Temperature Range
35-65℃
Max Flow
60L/Min
Control Accuracy
±2℃

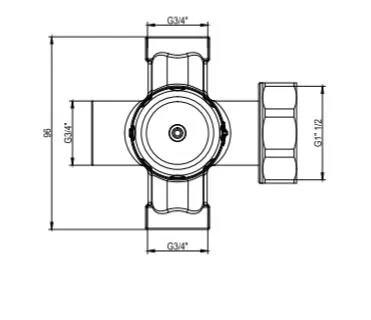

Dimmater
3/4 and G1 1/2 inch joint
Max inlet temperature
90℃
Products Show
Our Company

Office

Our office

Meeting Room

Our Meeting Room

Lab

Our Lab

Lab-1

Our Lab

Packing & Delivery

Packing Details  : Carton parking, 20pcs/carton

Delivery Details : 3-30 days after order

1. Exquisite packaging

2. Stronger carton

3. Complete package

Main Product

Wax Element Series

Our element has advantage as follow:

High Reaction sensitivity, high control accuracy Long lifespan, accept custom-made,great variety of goods,WRAS AND ACS Certificate.

Thermostatic Mixing Valve

Our valve has been specifically designed and manufactured to meet the
requirements of BS EN 1287:1999 and TMV2 Type Scheme.
The valve has been independently tested and approved as a TYPE 2 valve under the BuildCert TMV2 scheme by the WRc Testing & Evaluation Center.

Thermal actuator

The electric thermal actuator is mainly used in the heating system to control the opening and closing of the pipeline.Specifically applied to the electric drive part of the manifold,branch valve, small valves,dynamic balance valve
Work without noise, nut connection,is simple and fast installation and easy to disassemble.

FAQ

Q: Are you trading company or manufacturer ?

A: We are trading company.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
