Save energy automatic water return valve for Floor cooling and heating system

FOB Reference Price:Get Latest Price
$20.00 - $30.00 / Piece | 100 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Graphic customization (Min. Order: 100 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
SINHO
Model Number:
910033NT
Application:
General
Material:
Brass
Temperature of Media:
Medium Temperature
Pressure:
High Pressure
Power:
Hydraulic
Media:
Water
Port Size:
Standard
Structure:
Safety
Standard or Nonstandard:
Standard
OEM:
Yes
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs/cartons,the catton size is 54*35*40cm
Port
SHANGHAI
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 30 To be negotiated
Video Description
Product Description

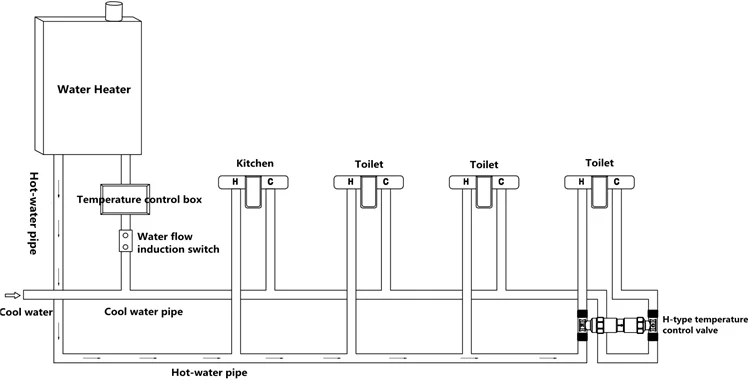

As shown in Fig, for the home water supply system installed with the intelligent temperature control valve of H-type water return system, in order to effectuate the use of hot water in the remotest main washroom, the user should turn on the faucet for 2-6 seconds and then turn it off, so that the water flow switch could sense the flow state of water in the pipeline, transform the flow state into an starting signal, and transmit the signal to the temperature control cycle control box, which will start the circulating pump. However, what is different from the existing ordinary home hot water circulating system is that: When the temperature of the residual water in the hot water pipe in the remote main washroom is lower than the opening temperature of the valve, the valve opens, and the residual low-temperature water in the hot water pipe will be pumped back through the intelligent temperature control valve of H-type water return system, and the main cold water pipe connected with it, to the water heater to be reheated. Meanwhile, the hot water in the water heater also flows timely to the remotest main washroom. When the hot water flows through the intelligent temperature control valve of H-type water return system, as the temperature of hot water is higher than the closing temperature of the valve of H-type water return system, so the valve is closed at the moment and the hot water flows directly into the hot water pipe in the remotest main washroom, enabling the user to enjoy warm or hot water in time.


Feature:

1.Easy to install

2.Intelligent temperature-control,avoid hot water go into the cool water pipe,prevent burns.

3.Automation work,save enegry,

Product Name

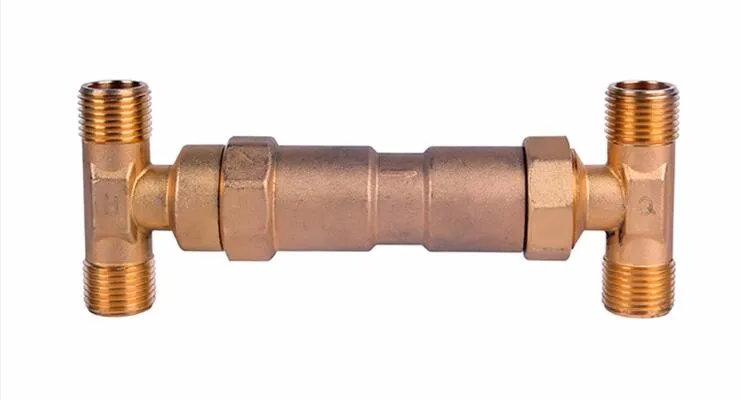

H-type backwater system thermostat valve
Material
Brass
Proof Pressure
10Bar
Close Temperature Range
35-37℃
Open Temperature Range
30-33℃
Mixing Temperature Range
55-75℃
Products Show
Our Company

Office

Our office

Meeting Room

Our Meeting Room

Lab

Our Lab

Lab-1

Our Lab

Packing & Delivery

Packing Details  : Carton parking, 20pcs/carton

Delivery Details : 3-30 days after order

Main Product

Wax Element Series

Our element has advantage as follow:

High Reaction sensitivity, high control accuracy Long lifespan, accept custom-made,great variety of goods,WRAS AND ACS Certificate.

Thermostatic Mixing Valve

Our valve has been specifically designed and manufactured to meet the
requirements of BS EN 1287:1999 and TMV2 Type Scheme.
The valve has been independently tested and approved as a TYPE 2 valve under the BuildCert TMV2 scheme by the WRc Testing & Evaluation Center.

Thermal actuator

The electric thermal actuator is mainly used in the heating system to control the opening and closing of the pipeline.Specifically applied to the electric drive part of the manifold,branch valve, small valves,dynamic balance valve
Work without noise, nut connection,is simple and fast installation and easy to disassemble.
